grip-tek fit guide for style d11 rubber tubing

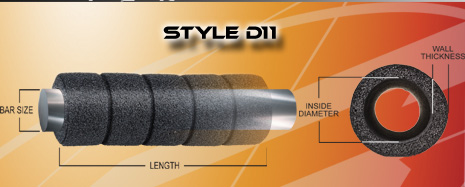

D11 Style foam rubber tubing is available in epdm foam or npvc foam and has a ground (buffed) skin surface with straight cut ends along with notches to provide a better grip.
EPDM foam rubber tubing with a Density of 18-22 lbs. |
||||
| Part Number | Inside Diameter (inches) | Recommended Bar Size (inches) | Wall Thickness (inches) | Length (inches) |
| D11E68M21 | 0.68 | 0.75 | 0.21 | up to 15 |
| D11E80M31 | 0.80 | 0.88 | 0.31 | up to 15 |
| D11E92M31 | 0.92 | 1.00 | 0.31 | up to 15 |
| D11E116M21 | 1.16 | 1.25 | 0.21 | up to 15 |
| D11E140M21 | 1.40 | 1.50 | 0.21 | up to 185 |
NPVC foam rubber tubing with a density of 12-15 lbs. |
||||
| Part Number | Inside Diameter (inches) | Recommended Bar Size (inches) | Wall Thickness (inches) | Length (inches) |
| D11N63M21 | 0.63 | 0.75 | 0.21 | up to 15 |
| D11N63M31 | 0.63 | 0.75 | 0.31 | up to 15 |
| D11N75M21 | 0.75 | 0.88 | 0.21 | up to 15 |
| D11N75M31 | 0.75 | 0.88 | 0.31 | up to 15 |
| D11N88M21 | 0.88 | 1.00 | 0.21 | up to 15 |
| D11N88M31 | 0.88 | 1.00 | 0.31 | up to 15 |
| D11N100M21 | 1.00 | 1.13 | 0.21 | up to 15 |
| D11N113M21 | 1.13 | 1.25 | 0.21 | up to 15 |
| D11N138M21 | 1.38 | 1.50 | 0.21 | up to 15 |
custom colors, sizes, and printing available on request for style D11 foam tubing. Contact your grip-tek sales agent at 888-345-2226 for a quote.
NPVC foam has excellent vibration dampening qualities and good weathering capabilities.
Low Density NPVC Foam
Extremely soft and flexible. Great for buffed grips or foam tubes. Thinner buffed grips function well on many low priced consumer applications.
Medium Density NPVC Foam
The perfect combination of softness and durability. It is commonly used on a wide variety of applications.
High Density NPVC Foam
Harder and more durable. Used on many commercial grade products and industrial items.
